Security Alarm - CMP Plenum Rated Shielded

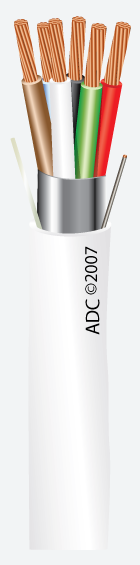

911806SD

Description:

Bare copper conductors, Low smoke PVC insulation, Shielded tape with drain wire, Natural low smoke PVC jacket with rip cord. Sequential footage marking.

Applications:

  • Security Systems
  • Intercom Systems
  • Sound/Audio Systems
  • Power-Limited Controls
ADC Part Number Description Download PDF
982202SD 22 AWG 2 Conductor Solid Shielded CMP
912202SD 22 AWG 2 Conductor Shielded CMP
982204SD  22 AWG 4 Conductor Solid Shielded CMP
912204SD 22 AWG 4 Conductor Shielded CMP
912206SD 22 AWG 6 Conductor Shielded CMP
912208SD 22 AWG 8 Conductor Shielded CMP
912210SD 22 AWG 10 Conductor Shielded CMP
912002SD 20 AWG 2 Conductor Shielded CMP
912004SD 20 AWG 4 Conductor Shielded CMP
911802SD 18 AWG 2 Conductor Shielded CMP
911803SD 18 AWG 3 Conductor Shielded CMP
911804SD 18 AWG 4 Conductor Shielded CMP
911806SD 18 AWG 6 Conductor Shielded CMP
911808SD 18 AWG 8 Conductor Shielded CMP
911809SD 18 AWG 9 Conductor Shielded CMP
911812SD 18 AWG 12 Conductor Shielded CMP
911602SD 16 AWG 2 Conductor Shielded CMP
911603SD 16 AWG 3 Conductor Shielded CMP
911604SD 16 AWG 4 Conductor Shielded CMP
911402SD 14 AWG 2 Conductor Shielded CMP
911403SD 14 AWG 3 Conductor Shielded CMP
911404SD 14 AWG 4 Conductor Shielded CMP
911202SD 12 AWG 2 Conductor Shielded CMP
911204SD 12 AWG 4 Conductor Shielded CMP
These specifications are subject to change at anytime without notice.

crossreferenceUse our cross reference to locate which ADC product meets the same specifications as other common brands.

*If there isn't a cross reference then contact your sales manager
*Cross reference should be used as a guide only and any choice should be confirmed before ordering.
